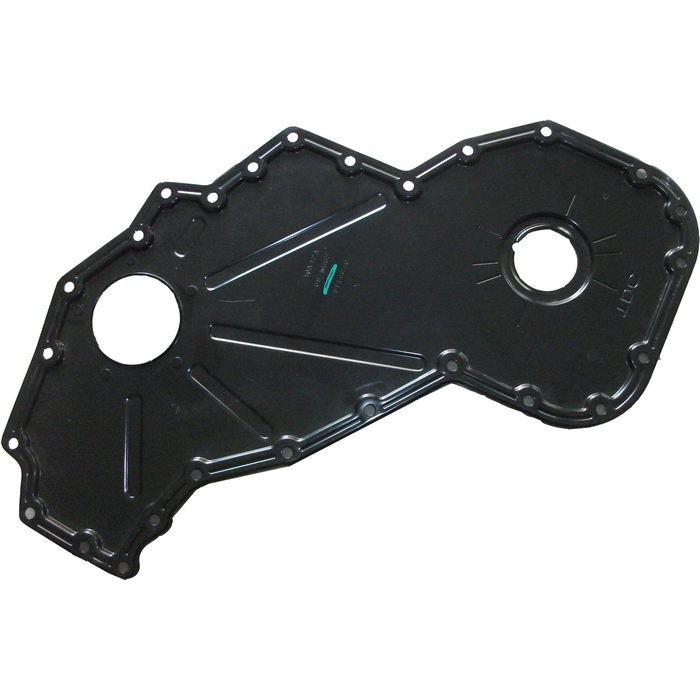

3958114 gear chamber cover
We mainly deals in Dongfeng truck accessories (engine/axle/gearbox/cabin), especially Dana axle accessories and Cummins engine parts (4BT, 6BT, 6CT, 6L, ISBE, ISDE, ISLE,ISF2.8, ISF3.8, NTA855, KTA19,KTA38, KTA50, M11, ISM, etc.) with great advantages
Product Descreiption
1. Product Specifications
- Part Number: 3958114
- Official Name: Gear Chamber Cover / Timing Gear Housing Cover
- Brand: Cummins (genuine diesel engine spare part)
- Applicable Engines: Cummins ISC, ISL, QSC, QSL, 6CT 8.3L series heavy-duty diesel engines
- Material: High-strength stamped steel / cast iron, anti-rust black coating finish
- Net Weight: Approx. 6 kg
- Structure: Integrated reinforced rib design, multiple bolt mounting holes, two reserved openings for shaft assembly
- Tolerance: Strict OEM machining tolerance for leak-proof assembly
- Application Scenarios: Heavy trucks, loaders, excavators, construction machinery, generator sets
2. Installation Position
It is mounted on the front end of the diesel engine, covering the entire timing gear chamber assembly:
- Fixed on the front housing of the engine block via circumferential bolts;
- Directly covers the engine front timing gear train (crankshaft timing gear, camshaft gear, fuel pump drive gear and idle gears);
- Located between the engine cylinder block and the radiator side, serving as the outer sealed enclosure of the front gear system.
Installation requirement: Install with a rubber sealing gasket between the cover and engine housing; tighten bolts diagonally in stages to guarantee uniform pressure and avoid oil leakage.
3. Core Functions
- Sealing & Oil Containment Forms a fully enclosed cavity to lock lubricating engine oil inside the gear chamber, prevents engine oil leakage, and maintains stable lubricating oil pressure for gear meshing.
- Contamination Protection Shields internal timing gears from external dust, mud, water and debris, avoids abrasive wear of gear teeth and premature failure of the timing system.
- Structural Support & Positioning Maintains precise alignment of the whole timing gear set, bears engine vibration and high temperature load, prevents gear offset and timing deviation.
- Noise & Vibration Reduction Encloses the gear meshing space to lower mechanical operation noise and buffer engine running vibration.
- Safety Isolation Isolates the high-speed rotating gear train from the outside, avoids accidental contact injuries, and protects internal transmission components.
