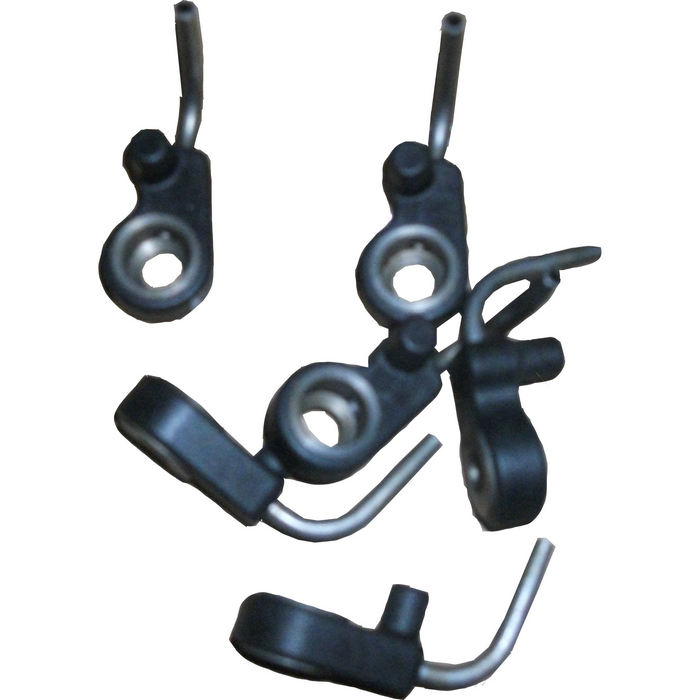

4937305 Piston Oil Cooling Nozzle
We mainly deals in Dongfeng truck accessories (engine/axle/gearbox/cabin), especially Dana axle accessories and Cummins engine parts (4BT, 6BT, 6CT, 6L, ISBE, ISDE, ISLE,ISF2.8, ISF3.8, NTA855, KTA19,KTA38, KTA50, M11, ISM, etc.) with great advantages
Product Descreiption
Specifications
- Part Number: 4937305 (C4937305)
- Applicable Engines: Cummins 6L, ISLE, QSL8.9, QSL9, 6CT, ISC8.3, QSC8.3 diesel engines
- Material: High‑strength steel nozzle tube + alloy base, heat‑resistant for high‑temperature engine environment
- Operating condition: Activates under normal engine lubrication oil pressure; one nozzle fitted per cylinder
- Weight: approx. 0.23 lb (104 g)
Installation Position
Mounted on the inner side of the engine cylinder block, below each cylinder bore, aligned toward the bottom of the piston crown.
Fixed with a mounting screw. Its spray tube points upward precisely to the underside of each piston. Oil is supplied from the main oil gallery inside the cylinder block. Correct orientation of the locating arm is required during installation to guarantee accurate oil‑spray direction.
Function
It sprays pressurized engine lubrication oil onto the underside of the piston continuously during engine operation.
- Dissipate excessive combustion heat from the piston, prevent piston overheating, thermal deformation and piston scuffing.
- Reduce thermal stress of piston assembly, extend piston and engine service life.
- Return sprayed oil back to the oil sump after heat exchange, part of the engine lubrication‑cooling circulation system.
