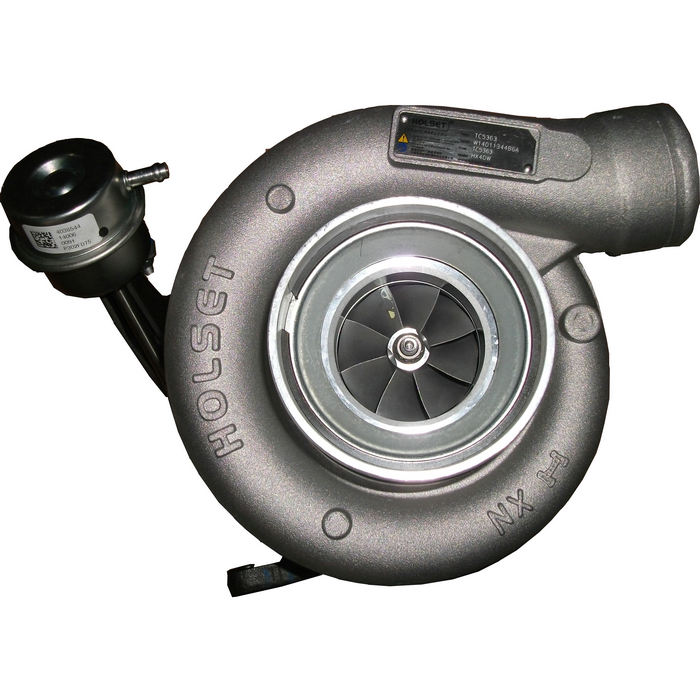

TC5363 Turbocharger
We mainly deals in Dongfeng truck accessories (engine/axle/gearbox/cabin), especially Dana axle accessories and Cummins engine parts (4BT, 6BT, 6CT, 6L, ISBE, ISDE, ISLE,ISF2.8, ISF3.8, NTA855, KTA19,KTA38, KTA50, M11, ISM, etc.) with great advantages
Product Descreiption
Specifications
- Model: TC5363
- Type: Radial flow exhaust gas turbocharger, oil-lubricated
- Application: Cummins heavy-duty diesel engine (truck / construction machinery)
- Structure: Consists of turbine housing, compressor housing, center rotating assembly (shaft, turbine wheel, compressor wheel), floating bearing and sealing system
- Working principle: Exhaust gas drives turbine wheel, which drives coaxial compressor wheel
- Max rotating speed: Up to 120,000–150,000 rpm
- Lubrication: Pressurized engine oil for bearing lubrication and cooling
- Material: Turbine housing made of high-temperature resistant cast alloy; compressor housing made of cast aluminum alloy
Installation Position
The TC5363 turbocharger is mounted directly on the engine exhaust manifold.
- Turbine inlet connects to exhaust manifold, receiving high-temperature exhaust gas from engine cylinders.
- Compressor inlet connects to air cleaner; compressor outlet connects to intercooler and then engine intake manifold.
- Oil supply pipe connects to engine main oil gallery; oil return pipe connects back to engine oil pan.
Function
- Recovers waste energy from engine exhaust gas to drive the compressor.
- Compresses ambient air and delivers denser air charge into engine cylinders.
- Raises engine intake air mass, improves combustion efficiency.
- Increases engine power and torque output without enlarging engine displacement.
- Reduces fuel consumption and exhaust emissions under matched working conditions.
