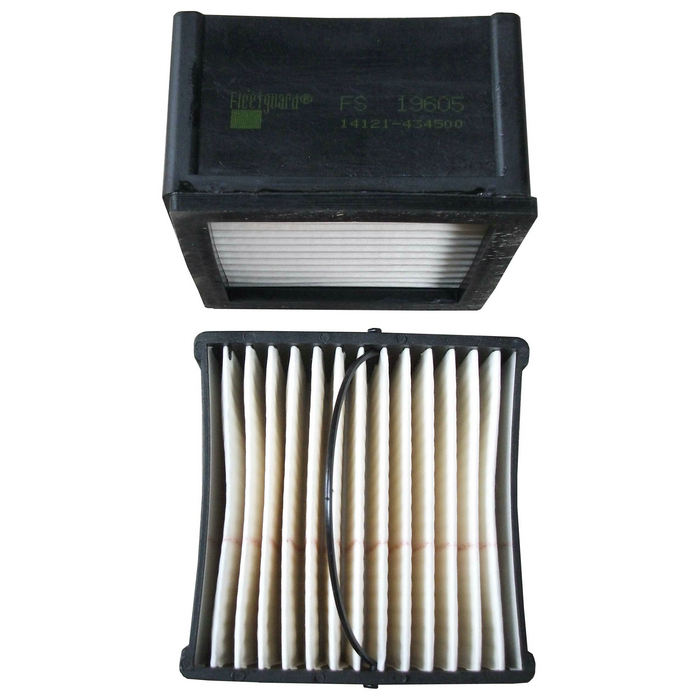

FS19605 Fuel Water Separator Filter
We mainly deals in Dongfeng truck accessories (engine/axle/gearbox/cabin), especially Dana axle accessories and Cummins engine parts (4BT, 6BT, 6CT, 6L, ISBE, ISDE, ISLE,ISF2.8, ISF3.8, NTA855, KTA19,KTA38, KTA50, M11, ISM, etc.) with great advantages
Product Descreiption
Specifications
Part No.: FS19605
Type: Panel fuel water separator filter
Dimensions: Height 54 mm, Length 89 mm, Width 88 mm
Weight: Approx. 0.2 kg
Filtration rating: 30 micron
Cross reference: Deutz 01319822, Volvo 14514238, Donaldson P502392
Application: Diesel engines, excavators and mining machinery
Installation Position
It is installed in the diesel fuel supply system, mounted on the fuel line between the fuel tank and engine fuel injection pump. It is usually fitted on the frame or engine compartment of excavators and mining trucks.
Function
- Separate free water from diesel fuel.
- Remove solid particles, dirt and contaminants in the diesel.
- Protect fuel injectors, fuel pump and other precision fuel system parts from water and particle damage.
- Reduce engine wear and maintain stable engine performance.
