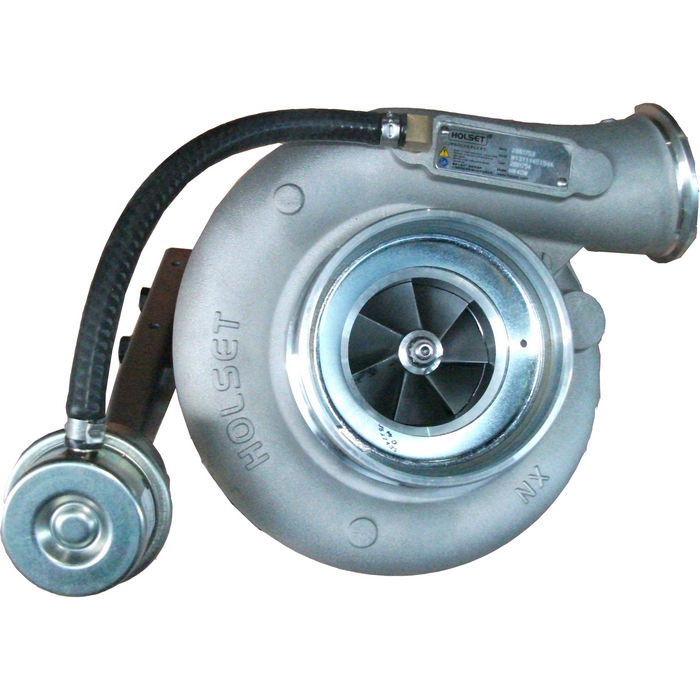

2881754 turbocharger
We mainly deals in Dongfeng truck accessories (engine/axle/gearbox/cabin), especially Dana axle accessories and Cummins engine parts (4BT, 6BT, 6CT, 6L, ISBE, ISDE, ISLE,ISF2.8, ISF3.8, NTA855, KTA19,KTA38, KTA50, M11, ISM, etc.) with great advantages
Product Descreiption
Specifications
- Part Number: 2881754
- Type: Holset Heavy-Duty Turbocharger
- Application Engine: Cummins ISX15 / QSX15 engine
- Compressor Wheel: Inducer approx. 97mm
- Turbine Wheel: Exducer approx. 108mm
- Turbo Model: HE400VG / HE451VE style variable geometry turbo
- Fuel Type: Diesel
- Cooling: Water-cooled + oil-lubricated
- Actuator: Electronic VGT actuator
- Max Working Pressure: Variable boost controlled by ECM
Installation Position
Mounted on the exhaust manifold of the Cummins ISX15/QSX15 diesel engine, between the exhaust manifold outlet and the exhaust aftertreatment system; the compressor side connects to the engine air intake system.
Function
- Uses exhaust gas energy to drive the turbine wheel, spinning the compressor wheel to pressurize intake air into engine cylinders (forced induction).
- Variable geometry turbine (VGT) adjusts turbine nozzle area dynamically to regulate boost pressure across low and high engine RPM.
- Improves engine power, torque and fuel efficiency; assists with exhaust brake function and helps control exhaust temperature for emissions aftertreatment.
